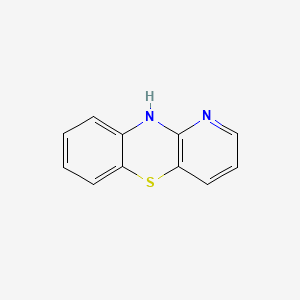

2D Structure
Also known as: 261-96-1, 10h-benzo[b]pyrido[2,3-e][1,4]thiazine, 10h-pyrido(3,2-b)(1,4)benzothiazine, 1-azaphenothiazine, 1h-pyrido[3,2-b][1,4]benzothiazine, Azaphenothiazine
Molecular Formula
C11H8N2S
Molecular Weight
200.26  g/mol
InChI Key
UKDZROJJLPDLDO-UHFFFAOYSA-N

1 2D Structure

2D Structure

2 Identification
2.1 Computed Descriptors
2.1.1 IUPAC Name
10H-pyrido[3,2-b][1,4]benzothiazine
2.1.2 InChI
InChI=1S/C11H8N2S/c1-2-5-9-8(4-1)13-11-10(14-9)6-3-7-12-11/h1-7H,(H,12,13)
2.1.3 InChI Key
UKDZROJJLPDLDO-UHFFFAOYSA-N
2.1.4 Canonical SMILES
C1=CC=C2C(=C1)NC3=C(S2)C=CC=N3
2.2 Synonyms
2.2.1 MeSH Synonyms

1. Azaphenothiazine

2.2.2 Depositor-Supplied Synonyms

1. 261-96-1

2. 10h-benzo[b]pyrido[2,3-e][1,4]thiazine

3. 10h-pyrido(3,2-b)(1,4)benzothiazine

4. 1-azaphenothiazine

5. 1h-pyrido[3,2-b][1,4]benzothiazine

6. Azaphenothiazine

7. Einecs 205-973-7

8. Nsc277720

9. 10h-benzo[e]pyrido[3,2-b][1,4]thiazine

10. Schembl459986

11. Dtxsid80180733

12. Amy37835

13. Bcp08187

14. Mfcd00160449

15. Akos016011192

16. Akos028109371

17. Cs-w015605

18. Fd10522

19. Nsc 277720

20. Nsc-277720

21. Da-29866

22. Ns00028044

23. 10h-pyrido[3,2-b][1,4]benzothiazine; 1h-pyrido[3,2-b][1,4]benzothiazine (9ci); 1-azaphenothiazine; Nsc 277720

24. 9-thia-2,4-diazatricyclo[8.4.0.0(3),?]tetradeca-1(14),3(8),4,6,10,12-hexaene

2.3 Create Date
2005-03-26
3 Chemical and Physical Properties
Molecular Weight 200.26 g/mol
Molecular Formula C11H8N2S
XLogP32.9
Hydrogen Bond Donor Count1
Hydrogen Bond Acceptor Count3
Rotatable Bond Count0
Exact Mass g/mol
Monoisotopic Mass g/mol
Topological Polar Surface Area50.2
Heavy Atom Count14
Formal Charge0
Complexity210
Isotope Atom Count0
Defined Atom Stereocenter Count0
Undefined Atom Stereocenter Count0
Defined Bond Stereocenter Count0
Undefined Bond Stereocenter Count0
Covalently Bonded Unit Count1
